Truss girder welding machine


Truss Girder Welding Machine

Truss girder (Lattic girder) welding machine

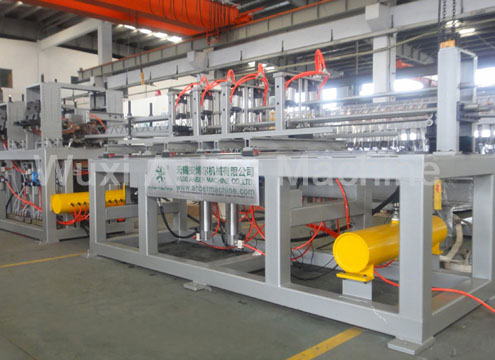

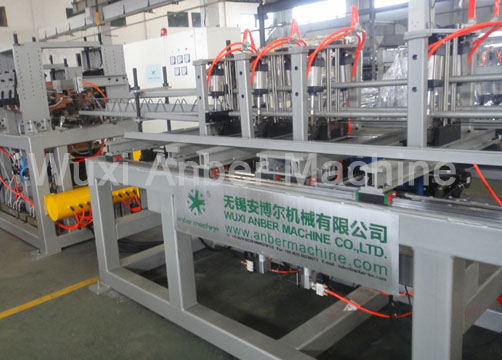

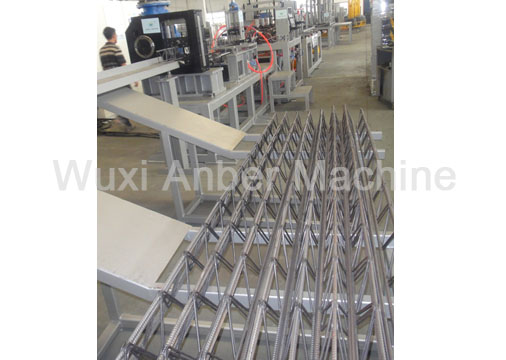

Truss girder from the welding machine

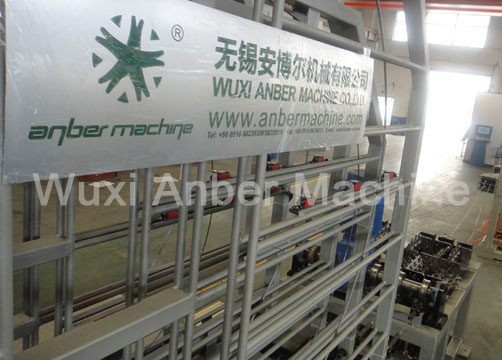

Pay-off of the truss gider welding production line

Pay-off of the truss gider welding production line

Line wire straightening unit of the truss gider welding production line

Line wire straightening unit
Each set can be controlled separately and there is emergency stop switch.

Inclined beading bending & molding structure of the truss girder welding machine

Inclined beading bending & molding structure
the height of the truss bridge is adjustable

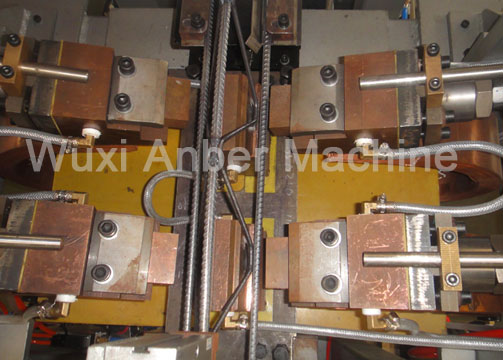

Welding system of the truss girder welding machine

Welding system of the truss girder welding machine

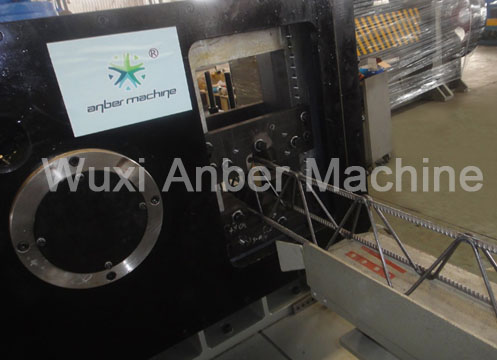

PLC controlling cabinet of the truss girder welding machine

PLC controlling cabinet of the truss girder welding machine

Main parameters

Power supply

380 +/-10% [V] , 50 +/-1% [Hz]

Electric power of welding unit

800 KVA
(average 90KVA)

Other machine power

50 KW

Source gas

Row amount

2000 L/min at 6 Bar

pressure

6 Bar

Cooling water

Row amount

150 L/min

Min. presuure

3 Bar

MAX water temperature

25 C

water inlet

2 x 1"

water exit

1 x 3"

Circumstance

temperature

0 - 40 C

altitude

< 1000 m.a.s.l.

Raw and processed material

Yield strength

MAX 600 N/mm2

Tensile strength

MAX 700 N/mm2

Elongation

> 14 %

Top wire diameter

6 - 14 mm

Bottom wire diameter

5 - 14 mm

Bending wire diameter

5 -8 mm

Truss girder welding machine
Max welding speed 12m/min

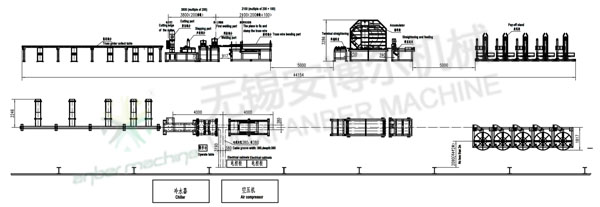

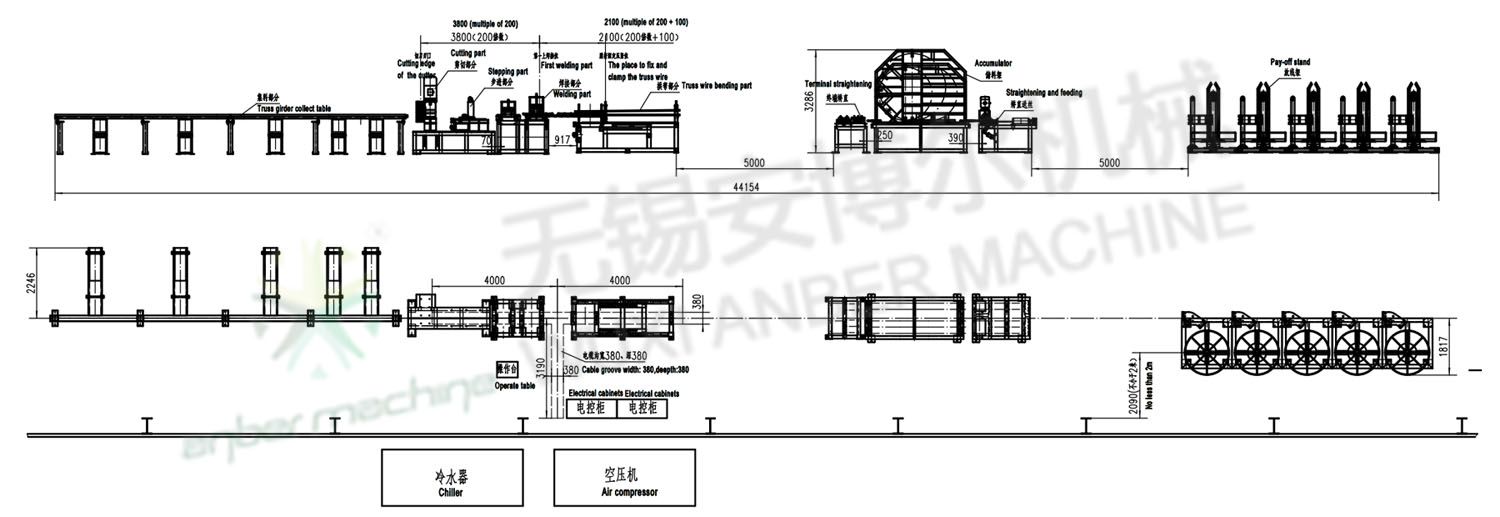

layout of truss girder welding machine
