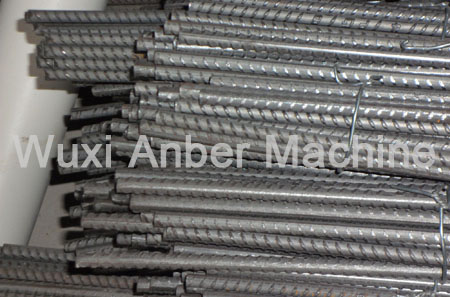

• Cold Rolling Ribbed Steel Bar Plant

factoryshow

Rolling Cassettes plant

factoryshow

Rolling Cassettes

factoryshow

New type Rolling Cassettes plant

factoryshow

Spooler wire take-up

factoryshow

Cold rolling and ribbing machine

  • 01. General description
  • The rolling cassette plant equipped with carbide die (cassette) instead of fixed wire drawing die, it is installed upon the straight line wire drawing machine, the cassette matched with angular cutter gear and mump lubricate system, to produce the low carbon, middle carbon and high carbon steel wire, also can produce the copper, aluminum and titanium, it increased the drawing and rolling speed.
  • 02.Technical parameter
  • Capstan dia. : 600mm
    Incoming wire dia.: 6.5mm, 6.0mm and 5.5mm
    Outgoing wire dia.: 3.5-5mm
    Total compressibility: 85%
    Wire roller speed: 10m/s
    Single motor power: 35 KW
    Capstan number: according to the inlet wire diameter and outlet wire diameter
    Gear description: Angular milling gear
    Lubrication of gears and bearings: Oil pump compulsion lubrication
  • 03.Related accessory machine

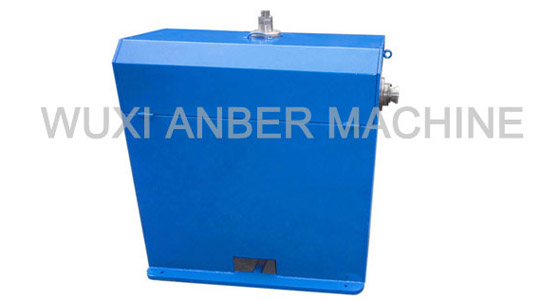

  • Mechanical wire descaling machine, butt welding machine, wire pointing machine, SG800 spooler wire take-up, hydraulic wire pay-off
