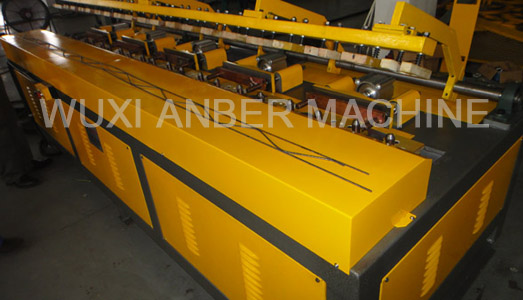

- 2D Truss Girder Welding Machine
Truss girder welding lines
Semi-auto flat truss girder welding machine
Low carbon steel wire truss girder welding machine
The 2D lattice girder welding machine
Truss girder machine
- 01. Introduction of 2D truss girder welding machine
- The truss girder welding machine contains Line wire straightening unit, Line wire accumulator, inclined beading bending & moulding structure, Welding system, Truss bridge feeding system, Truss bridge cutting, material receiving system.
- 02.Main parameters
-
Power supply380V, 50HzElectric power of welding unit800 [KVA]
(average 90KVA)Other machine power
50 [KW]
Source gas
Row amount
2000 [l/min at 6 Bar]
pressure
6 [Bar]
Cooling water
Row amount
150 [l/min]
Min. presuure
3 [Bar]
MAX water temperature
25 [C]
water inlet
2 x 1"
water exit
1 x 3"
Circumstance
temperature
0 - 40 [C]
altitude
< 1000 [m.a.s.l.]
Raw and processed materials
Yield strengthMAX 600 [N/mm2]s
Tensile strengthMAX 700 [N/mm2]
Elongation> 14 [%]
Top wire diameter6 - 14 [mm]
Bottom wire diameter5 - 14 [mm]
Bending wire diameter5 -8 [mm]
Truss girder welding machinesMax welding speed15 [m/min]
- 03.Finished products (2D truss girder)
