Introduction of Reinforcing mesh welding line: |
|

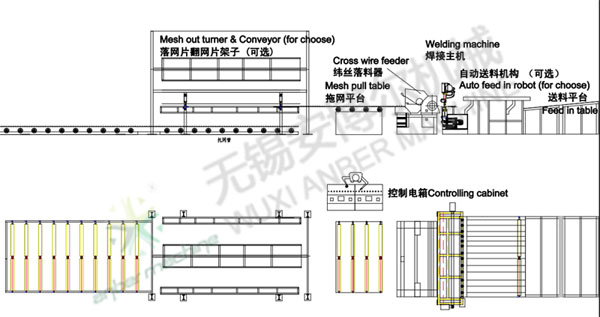

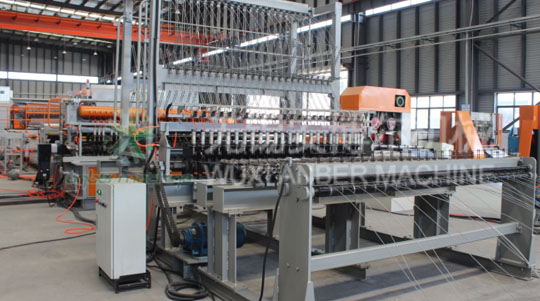

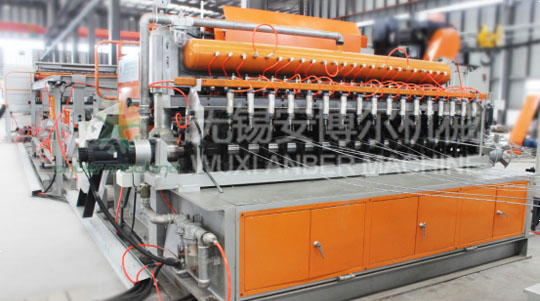

Reinforcing welded mesh machine for the welded farbric mesh reinforcement

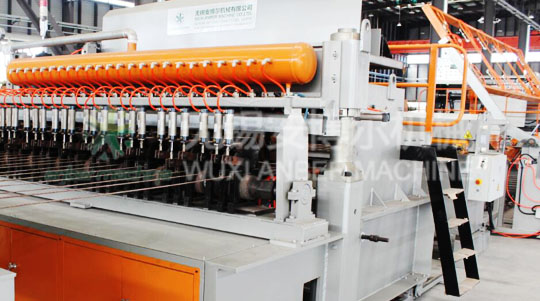

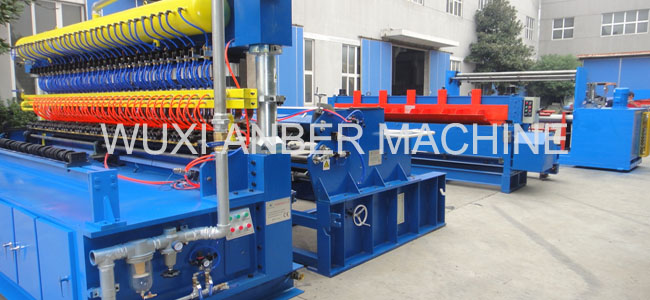

Steel bar mesh welding machine

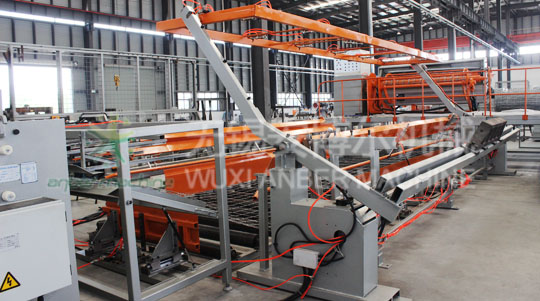

Mesh Coiling machine of the Reinforcing Bar Mesh Welding Machine (back view)
Mesh out puller of the reinforcing mesh welding machine
Electrical controlling system of reinfrocing mesh welding machine
Line wire guider of the reinforcing mesh welding machine
|
| ABE series consist of the shelf for releasing line, warp-rectified mechanism, mesh welding machine, mesh cutting machine and the shelf for mesh falling material. It can weld Ø3 to Ø14 cold-rolled reinforcing steel with rib, steel wire as well as stainless steel wire. It adopts hydraulic pressure transmission. PLC can compile procedure controlling in order to make the distance of the mesh check accurate and operate conveniently. It can adopt once pressurization, once electrify or once pressurization, three times electrify while welding,The disk of warp release the line, warp rectifying, weft increasing material, mesh welding, mesh cutting the falling net for the fixed length. All the actions go on successively and automatically. Many types design can satisfy different requirements. ABE series are machinery, they adopt electrical machinery which can change frequency to control electrode servo, electrical machinery control the pulling mesh. It adopts simens PLC. |
|
| |
|
| |
Main parameter of Reinforcing mesh welding line: |
|
| MODEL NO. |
ABE-5/12-3300 |
ABE-5/12-3000 |
ABE-5/12-2400 |
| Rated transformer |
8*125KVA |
8*125KVA |
6*125KVA |
| Max. Width |
3300mm |
3000mm |
2400mm |
| Mesh opening |
100-400mm |
100-400mm |
100-400mm |
| Number of Eletrodes |
33 (CAN BE REQUIRE) |
30 (CAN BE REQUIRE) |
24 (CAN BE REQUIRE) |
| Wire diameter |
5-12 MM |
5-12 MM |
5-12 MM |
| SPEED |
60-80 line/min |
60-80 line/min |
60-80 line/min |
| Air pressure (Mpa) |
(0.7Mpa) 4.5m 3 |
(0.7Mpa) 4.5m 3 |
(0.7Mpa) 4.5m 3 |
| Feeding materials |
Wire rod or line wire |
Wire rod or line wire |
Wire rod or line wire |
| RAW MATERIALS |
Reiforced steel bar |
Reiforced steel bar |
Reiforced steel bar |
|
| |
|
|
|
|
|
The finished products |
|
|
|
|
Reinforcement welded mesh |
Welded steel wire fabric for concrete reinforcement |
Welded mesh panel
|
| |
|
|
|
|
