Automatic wire mesh welding lines


Introduction of automatic wire mesh welding lines:
Both line wire coils and cross wire coils for the auto mesh welding machine are automatically straighten, cut and fed. The finished mesh is also automatically recoiled and cut. Line wires are automatically straightening, storage and feeding. Cross wires are automatically straightening, storage and feeding in the production line. Compared with ordinary reinforcing mesh welding equipment, both line wires and cross wires are fed with coils. Automatically feeding, recoil and cut and discharge the welded mesh roll which maximized save labor and greatly increased production.
Full auto mesh welding line

Full auto mesh welding line

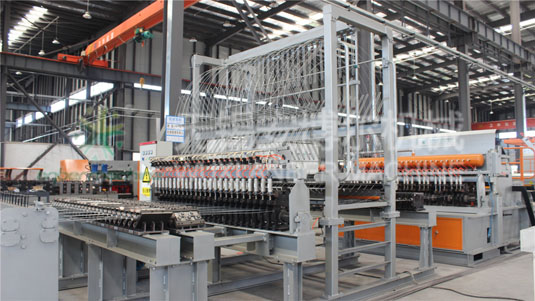

Mesh welding line

Mesh welding line

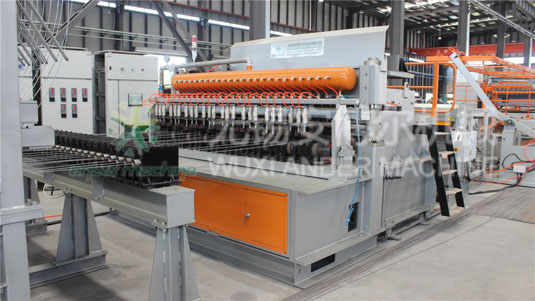

Mesh welding machine

Mesh welding machine

Spooler wire pay off

Spooler wire pay off

Welded mesh recoiling machine

Welded mesh recoiling machine




Model
ABE-3/6-2400C
Max width of the panel mesh
2400mm
Max length
6000 mm
Line wire spacing
50-200mm
Cross wire spacing
50-200mm
Wire diameter
3-6mm
Feeding way
Line wire
In coils
Cross wire
In coils
Number of welder
24points
Max. welding speed
60-90 meshes/minute
Electric capacity
500KVA
Air consumption
≥0.8Mpa, 2m3/min
Cooling water consumption
≥0.3Mpa, 3m3/min

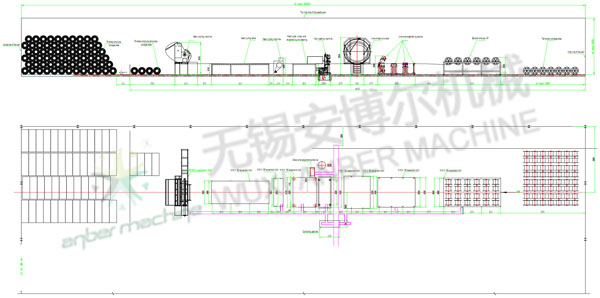

Layout of  automatic wire mesh welding lines:
