• Semi-auto Steel Grating Welding Line

factoryshow

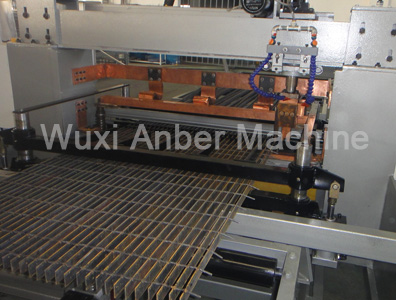

Grating welding machine

factoryshow

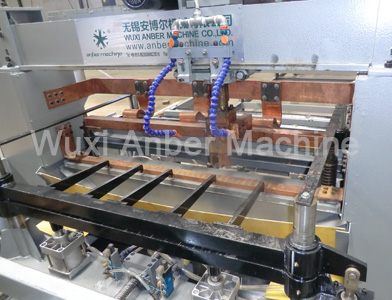

Steel floor grating and double wire panel machine

factoryshow

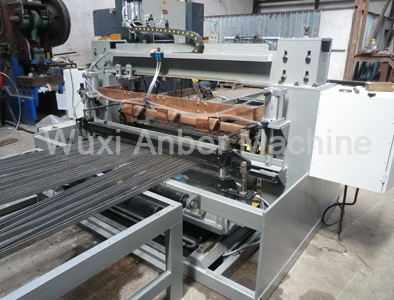

Steel Grating Welding Machine

factoryshow

spot steel grating machine

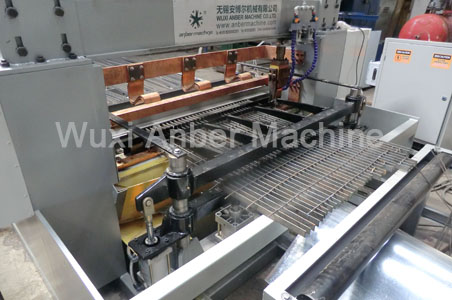

  • 01. Introduction of semi-auto steel grating welding line
  • Steel grating electric welding machine is to weld the steel strip and round wire (twisted square steel) crossed together, the steel grating plate is widely applied as platform, ceiling, fence, walkway, etc, in the field of petroleum, chemical, electric power, wharf, municipal, environmental protection, national defense. The steel grating welding machine applies electric synchronous technique, welding time and welding are controlled by digital integrated circuits, it is high accuracy, stable, and firm welding, transmission parts are pneumatic and imported, so the welding pressure is even and low failure and can service for long time.
  • 02.Main parameter
  • Model
    ABE-GYH-1000-2
    ABE-GYH-1000-4
    ABE-GYH-1000-8
    Production capacity
    70-100M2/shift (8hours), one panel per two hours
    150-200M2/shift (8hours), one panel per one hour
    100-150M2/shift (8hours), one panel per one and a half hours
    Welding points at one time
    2 welding points
    4 welding points
    8 welding points
    Bar range: 2.5-5mm
    Bar width: 25mm-60mm
    Cross bar range: 5-8mm (twisted square steel)
    Welding panel width: 1M; length: 6M
    Pitch of flat bar: 25, 30, 40, 50, 60mm
    Pitch of cross bar: 30, 50, 100, 160mm
    Welding transformer: 200 kva
    Overall size: 16*2.5*1.5M
    Weight: 4000kg
    Servo motor pulling: Panasonic, 3kw
    PLC Control cabinet: Panasonic
  • 03. Auxiliary equipment
  • Twisted square bar drawing machine, frequency motor 22kw
    Bracket and grating flatting table
    Tip roller
    Butt welding machine
