Rib lath machine


Instruction of rib lath machine:

rib lath machine schedule map

rib lath machine schedule map

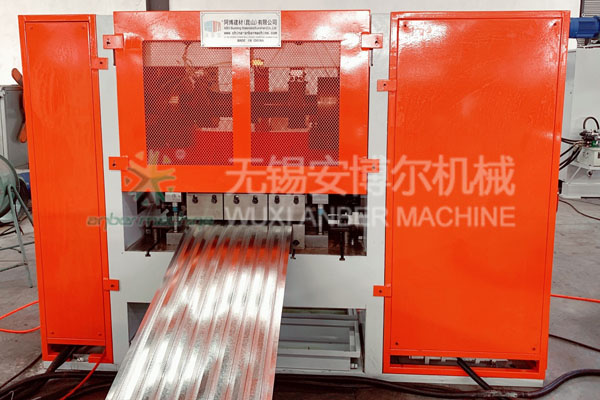

rib lath machine

rib lath machine

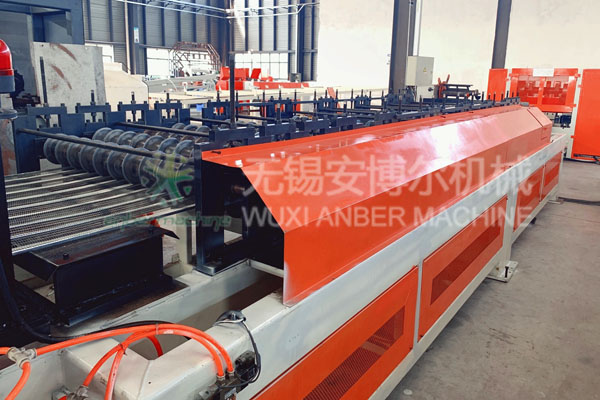

rib lath production line with lath collector

rib lath production line with lath collector

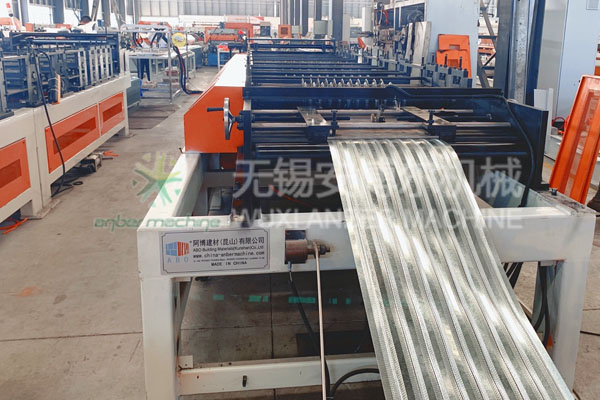

rib lath rollformer

rib lath rollformer

controlling system of rib lath production line

controlling system of rib lath production line

  • rib lath machine schedule map
  • rib lath machine
  • rib lath production line with lath collector
  • rib lath rollformer
  • controlling system of rib lath production line


Layout: feeding trolley - uncoiler - expanded main machine - roll profiling machine - hydraulic rib lath shearing machine - hydraulic automatic rib lath collect - control cabinet
Material to produce rib lath: 0.3-0.6mm thickness and 420mm width galvanized sheet
Rib lath parameter:
Length: 2493mm, width: 686mm
Dimensions: strand width 1.5mm, plate thickness: 0.3-0.6mm, rib distance 98mm, LWD: 10mm, SWD: 5mm

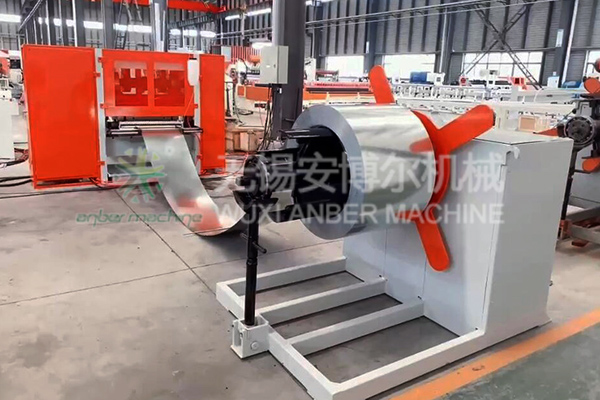

1 set of simple de-coiler (inner dia.: min 400mm; loading weight: 1000kg)
1 set of punching machine
Punching speed: 180 times/min
Punching force: 250KN
Punching mould material: TC53
Overall size: 1325*990*2140mm
1 set of expanded main machine with shearer
Main motor power: 4 kw
Cutting motor: 3kw
mould material: GCR12
Speed: Max. 4m / minutes
Overall size: 5.8m*1m*1.5m
1 set of Feeding device
1 set of collecting Table (Max. Length: 3,000mm)
Occupy area: 12m*2m*2.5m

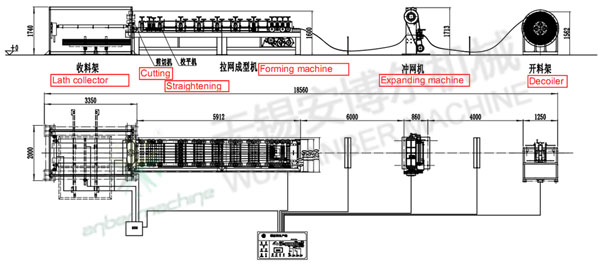

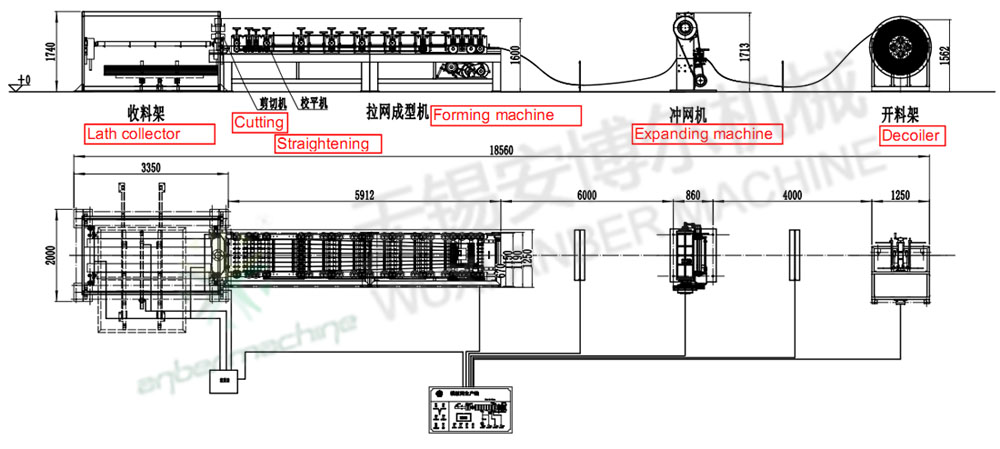

Layout of rib lath machine:

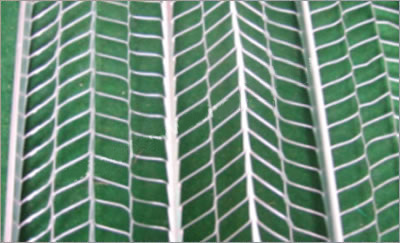

The finished products (rib lath)

rib lath

Rib lath
