Introduction of Expanded Metal Mesh production line: |
|

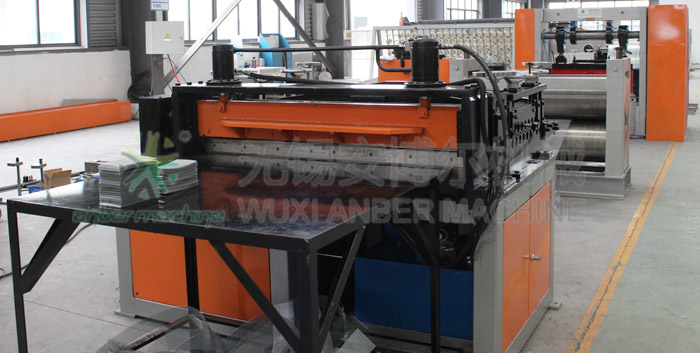

Expanded Metal Mesh production Line for sheets:

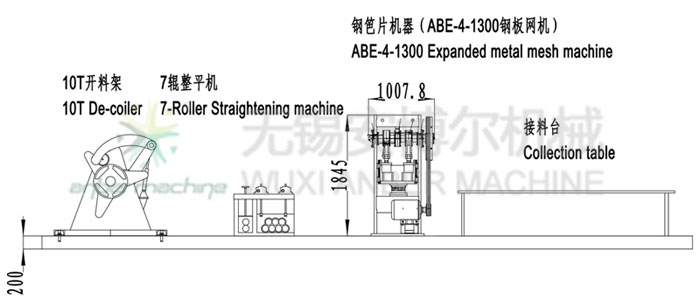

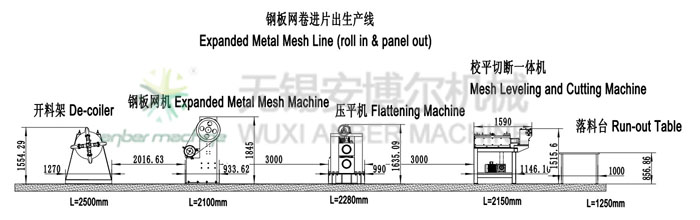

Decoiler-------Expanded Metal Mesh machine----------Flatten machine--------Cutting machine
Expanded Metal Mesh production Line for coils:

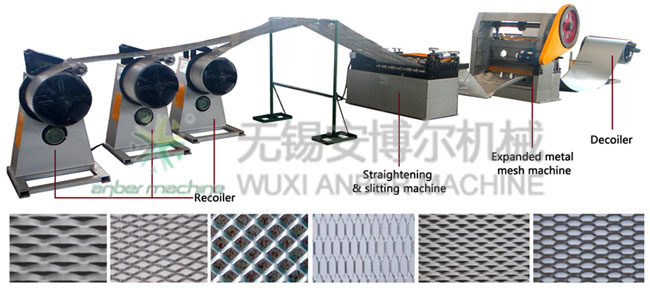

Decoiler-------Expanded Metal Mesh machine----------Flatten machine--------Slitting machine--------Recoiler
|
|
| |
|
Accessary Equipment for Expanded Metal Mesh Machine |
|
| |
|
| |
|

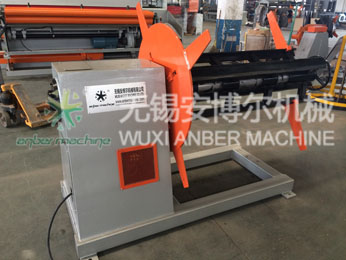

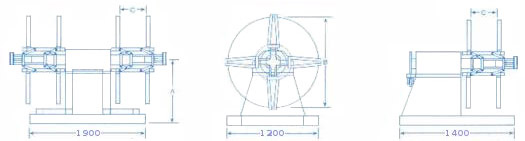

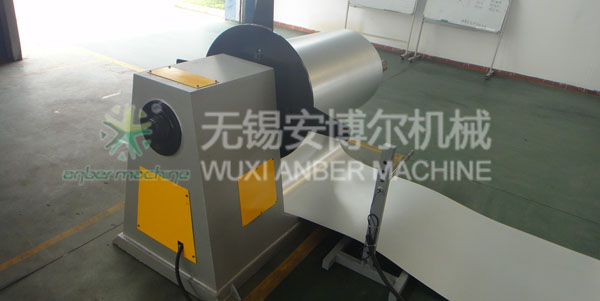

The uncoiler is the accessory machine for the expanded metal mesh machine, it is used for opening the rolling sheet irons which is fed into the expanded metal mesh machine. The uncoiler is also called de-coiler, unwider. We can supply these kinds of de-coiler machine, such as heavy duty uncoiler, double stock reel uncoiler, stocker reel, 150kg decoiler, 500kg decoiler,1000kg decoiler, 2000 kg decoiler, etc.
The following is the technical parameter of the decoiler:
Width: 200-600mm
Mtarial thickness: 0-3mm, or can be designed according to customer's requirement
Speed reducer: 1/60
Machine motor: 1 HP
Interior dia.: 300-530mm, or can be designed according to customer's requirement
Exterior diameter: 1200mm
Max. Material weight: 500-2000kg, or can be designed according to customer's requirement
Decoiler options:
* DC Controlled Gear Motor
* Jog Control
* Dancer Arm Loop Control
* Air Brake
* Hydraulic Expansion
* Ultrasonic Loop Contol
* Hydraulic Rotation
* Keeper Arms (Set of 3)
* Back Plate (48" Std.)
* Air Clutch
* Pneumatic Hold Down Arm
|
| |
|
| |
| |
|
| |
|
| |
|

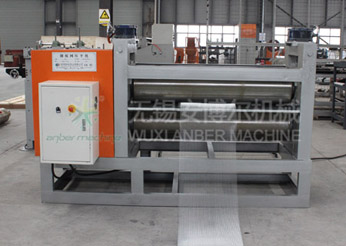

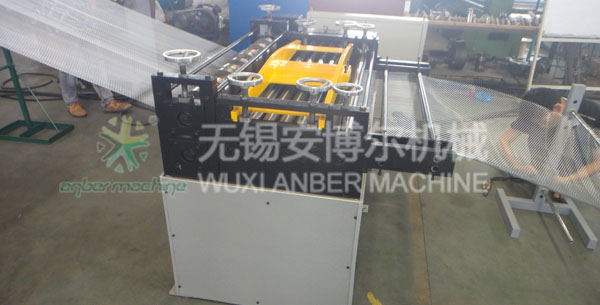

Metal Flattening Machine is the accessory machine for expanded metal mesh machine. The flattened expanded metal has nice outlook and smooth appearance, with higher value. We can supply all kinds of flatten machine, such as four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.5m.
Parameter:
Working width: 1200mm or at customer's requirement
Press roller: 270mm or at customer's requirement
Driving motor: 7.5Hp
Power: 380/220V*50/60Hz
Type: ABE-YP1200 |
| |
|
| |

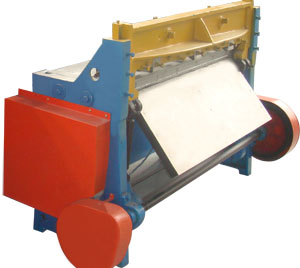

Cutting machines are used to cut the expanded metal mesh into length. Available: Manual feeding, Auto feeding.
Model: ABE-JQ001
Max. width: 1300mm
Max. Thickness of metal: 1mm
Weight: 450kg
Motor: 1.5 KW
Size: 1750 x 600 x 1000mm
Model: ABE-JQ002
Max. width: 2500mm
Max. Thickness of metal: 4mm
Weight: 2700kg
Motor: 5.5 KW
Size: 3580 x 1300 x 1610mm |
|
| |
|
| |
|

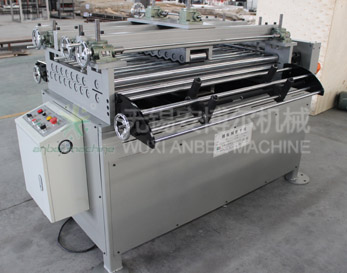

The slitting machine is used to litting the mesh into several stips, to make the wide mesh into narrow mesh, and the strip number is according to the blade number.
Parameter:
Working width: 1000mm or at customer's requirement
Working thickness: 1.0mm (max.) or at customer's requirement
Driving motor: 380/220V*50/60Hz
Working type: Rolling cutter type or at customer's requirement
Type: ABE-FT1000 |
| |
|
| |

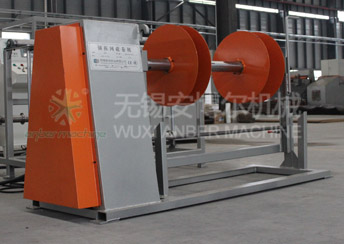

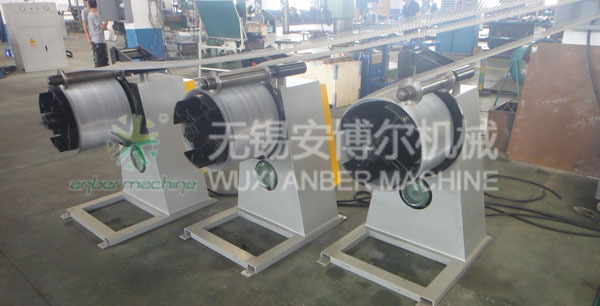

The uncoiler is used to recoil the finished expanded metal mesh.
The following is the technical parameter of the decoiler:
Width: 200-600mm
Mtarial thickness: 0-3mm, or at customer's requirement
Speed reducer: 1/60
Machine motor: 1 HP
Interior dia.: 300-530mm, or at customer's requirement
Exterior diameter: 1200mm
Max. Material weight: 500-2000kg, or can be designed according to customer's requirement |
|
| |
|
|

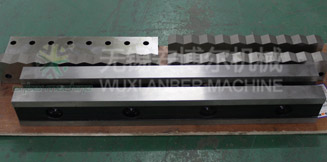

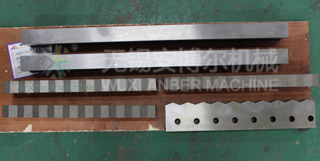

Optional Spare Parts: Metal Lath Mould Or Punching Dies |
|
|
|
|
|

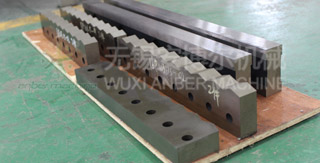

Expanded Machine Model 1 |
Expanded Machine Model 2
|
Expanded Machine Model 3
|
|
|
|

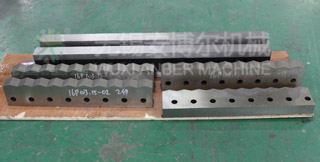

Expanded Machine Model 4 |
Expanded Machine Model 5 |
Expanded Machine Model 6 |
| |
|
|
|
|
