- ABE-GS100-2500 H.S. Expanded Metal Machine

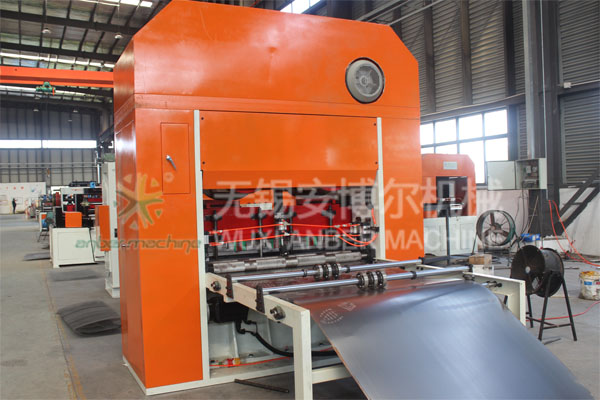

High speed expanded metal machine

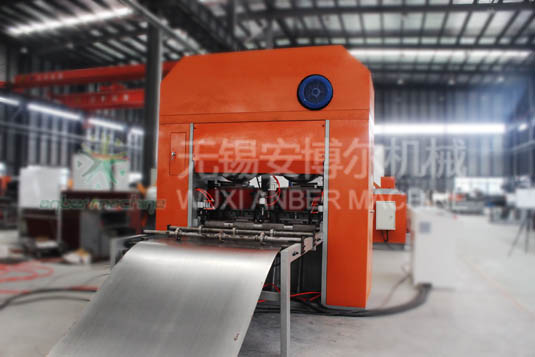

High speed expanded metal mesh machine

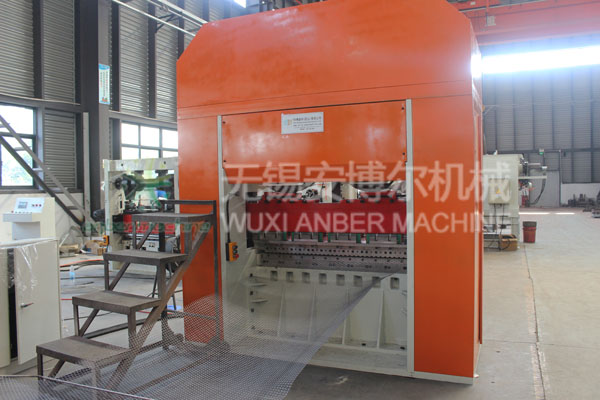

High speed expanded mesh machine

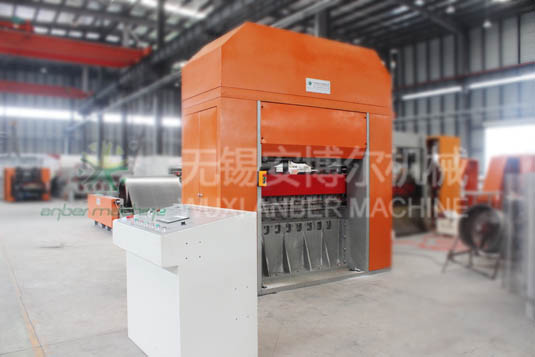

H.S. expanded metal machine
- 01. What is expanded metal mesh?
- Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Expanded metal mesh products are produced from solid sheets or plates of carbon, galvanized steel and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, it can never unravel. The metal strands forming the open diamonds permit light, heat, air, liquids and sound to pass through – yet present a virtually impenetrable barrier to intruders. Expanded metal mesh is an extraordinary, versatile material – one with thousands of uses. Rhomboidal expanded metal is the most common used expanded metal pattern. Its diamond shape allows good air and light passage and gives an aesthetic appeal.
- 02.Expanded metal mesh production process
- 1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing. - 03. Composition
| High-speed heavy-duty expanded metal mesh machine consists of a frame, left and right wall panels, top seats, drive motors, V-belt and chain transmission mechanism, double crankshaft and adjustment device, double eccentric press wheel transmission mechanism, upper sliding seat and knife mold mechanism, and swing mechanism, lubrication mechanism, clutch and pneumatic mechanism, lubrication mechanism, electric control system and protective cover. |
- 04. Main technical parameters
- Model: ABE-GS100-2500
Punching force: 100T
Max. Material thickness: 4.0mm for mild steel
Max.width of material: 2500mm
Max. working speed: 200 strokes/minute
Main motor power: 75kw
Servo motor feeding power: 3.0KW
Left and right stroke: ±100mm
Up and down stroke: ±40mm
Equipment size(L*W*H): 3920×1560×2970mm
Weight: about 18.0T
Electrical components: Siemens, Schneider or CHNT
Bearing: HRB
Pneumatic components: AirTAc
Servo motor: ELT
Servo reducer: NEWSTART
