Stirrup Bender
Stirrup Bender
ABE12D-1 Stirrup Bender


Stirrup Bender


Stirrup bending machine

Stirrup bending machine

Stirrup bender

Stirrup bender

Iron bar metal bender

Iron bar metal bender

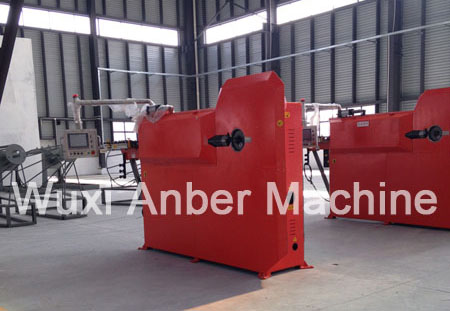

Automatic stirrup bending machine

Automatic stirrup bending machine

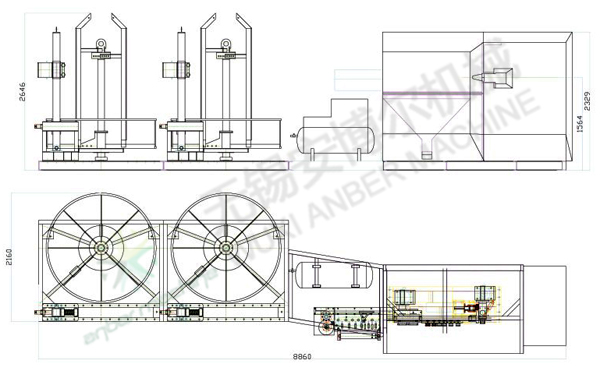

Layout:
Technical data:
Single wire
Φ5 - 12 mm
Double wire
Φ5 - 10 mm
Max bending angle
180°
Max bending speed
1100°/sec
Max pulling speed
110 - 130 m/min
Max length of the stirrup side
1300 mm
Min length of the stirrup side
110 mm
Length tolerance
±1 mm
Bending tolerance
±1°
Average air-compressed consumption
6 l/min
Average electric power consumption
6 - 8 Kw/hour
Labeled electric power
28 Kw
Voltage
380 V / 50 - 60 Hz
Overall machine weight
4,700 Kg
Overall dimension
9(L) × 3(W) ×3(H)
Production capacity
single wire: 900 pcs per hour
double wire: 1800 pcs per hour
Bending direction
bi-direction
Structure:
No.
Components
Quantity
Remarks
1
Payoff
2 sets
Off-coil
2
Feeding unit
1 set
-
3

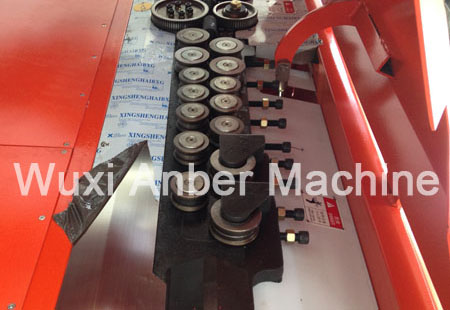

Straightening unit
2 sets
-
4
Pulling unit
1 set
Made in Japan
5
Bending unit
1 set
Made in Japan
6
Cutting unit
1 set
-
7
Control console
1 set
Made in Italy
8
Air compressor
1 set
0.42 m³/min
9
Spare parts
1 set
-
10
Tools
1 set
-
11
User’s guide
1 set
English version
