• 16T High Speed Punching Press

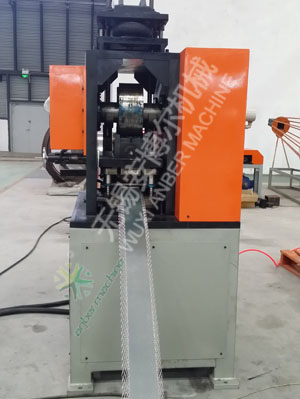

16T high speed punching press

16T high speed punching press

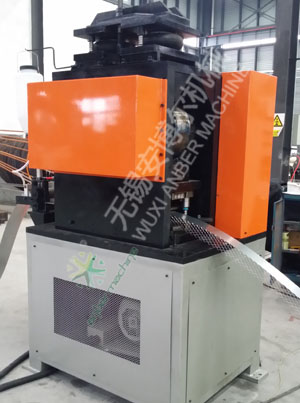

High speed angle bead machine

High speed angle bead machine

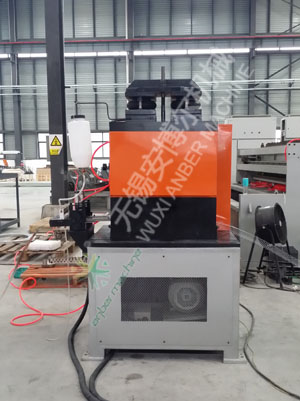

High speed architrave bead machine

High speed architrave bead machine

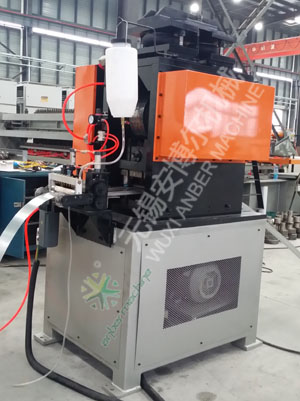

High speed expanded metal mesh machine

High speed expanded metal mesh machine

High speed punching press

High speed punching press

  • 01. Machine characteristic
  • 1. Higher capacity to produce the mesh
    2. Easy operation, save the labor cost and maintain cost.
  • 02. Machine application
  • This high speed punching press can be used to produce angle bead, plaster stop bead, movement bead, architrave bead, etc which the raw material is small. The material width can use 300mm 0.3-1.2mm thickness cold rolled steel.
  • 03. Main parameters
  • SN
    Item
    Unit
    Technical
    1
    Model
    ABE-GS-16/300
    2
    Pressure
    KN
    160
    3
    Material thickness
    mm
    MAX. 1.2MM GI
    4
    Mesh width
    mm
    (≤300)
    5
    Punching speed
    strokes/min
    500
    6
    Slide stroke
    mm
    25
    7
    Max. Die height
    mm
    200
    8
    Die height adjustment
    mm
    Max. 50
    9
    Working table size
    mm
    600×320
    10
    Motor
    Power
    KW
    5.5
    Rotate speed
    R/min
    970
    11
    Overall size (L×W×H)
    mm
    1400×1200×1900
    12
    Total weight
    kg
    1350
    13
    Remark
    Above parameter can be designed according to customer’s requirement
