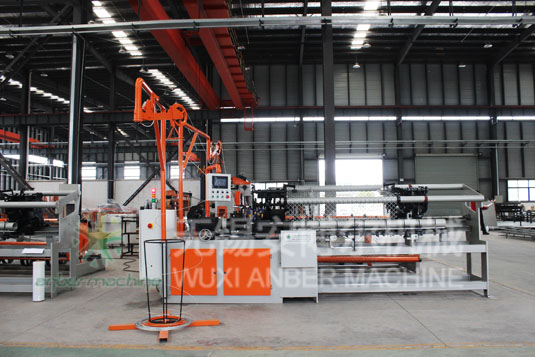

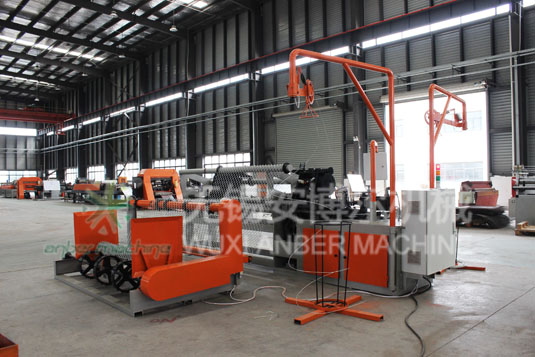

Chain link fence machine

Chain link fence machine

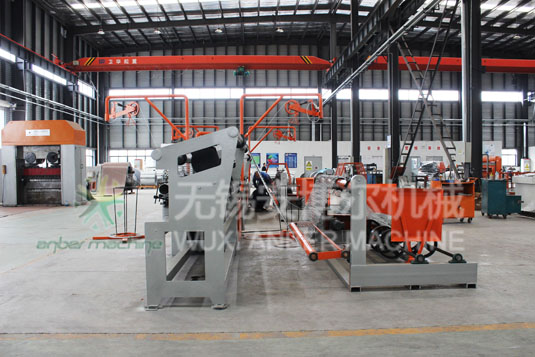

Double spiral chain link machine

Double spiral chain link machine

Double spiral chain link machine

Double spiral chain link machine

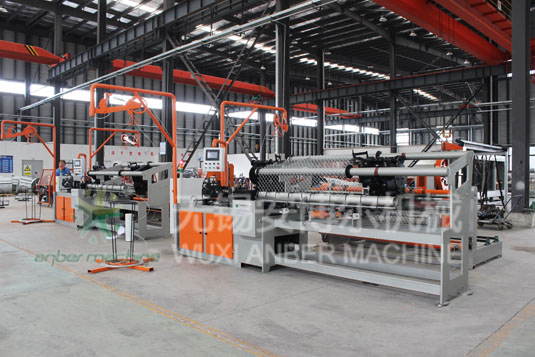

Full atuo chain link machine

Full atuo chain link machine

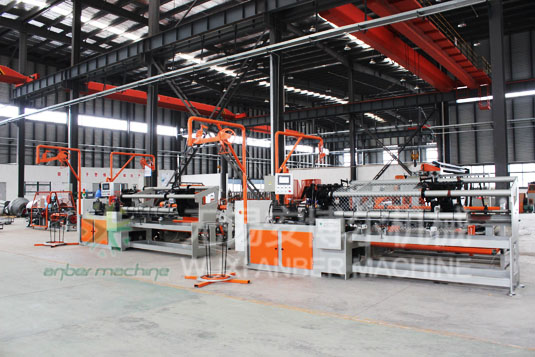

Automatic chain link machine

Automatic chain link machine

  • 01. Introduction of chain link fence machine
  • The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.
  • 02. Main parameter
  • Width scope of weaving
    2m
    Width of net
    2m
    Diameter of wire
    1.8-4 mm (depend on the mesh size)
    Speed of the axle of shaped knife
    275-1100 rpm (variable speed)
    Power consumption
    Seven motor, one 3.0KW, one 1.5KW, two 0.75KW, one 0.55KW and two 0.12kw
    Output
    210-240m2/h
    Actual output is related with the mesh opening size.
    Suitable wire to the machine
    Galvanized wire, drawn wire, steel wire, PVC wire
    Mesh opening size
    1”-3-1/2”
    Weight of equipment
    2080kg
    Outer size
    4700*1430*1800mm
    One side or both sides of the end of the net hole is twisted or with burr in edge
  • 03. Chain link fence
  • Material:Hot-dip galvanized iron wire, galvanized iron wire
    Application:Chain link fences are mainly used as isolation screen and protection system for expressway and railway, protective fences for rivers, playground and gardens, mines, fences for security for residential buildings and commercial sites
    Mesh opening
    inch
    1.5
    2
    2.25
    2.4
    2.5
    3
    4
    mm
    40
    50
    55
    60
    65
    76
    100
    Wire diameter
    18# —7#
    1.20mm———5.0mm
    Mesh length
    1.0m——50m
    Mesh width
    0.5m——4.0m

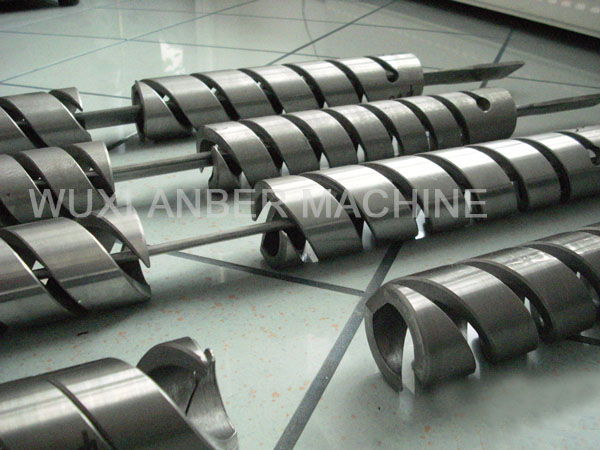

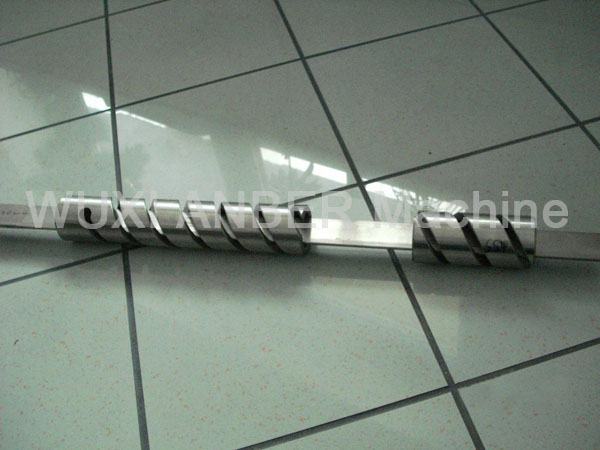

  • 04. Knife of chainlink machine
  • 勾花网 勾花网
  • 05. The finished products (chain link fence)
  • Chain link fence
    Chain link fence
    Chain link fence
    Chain link fence
    Galvanized Chain link fence
    PVC Coated Chain link fence
    Material: Hot-dip galvanized iron wire, galvanized iron wire
    Application:     Chain link fences are mainly used as isolation screen and protection system for expressway and railway, protective fences for rivers,playground and gardens, mines, fences for security for residential buildings and commercial sites.
