Steel grid welding machine
ABE-GYH-630/800/1000-2A-2Steel grid
welding machine








ABE-GYH-630/800/1000-2A-2Steel grid welding machine


Introduction of ABE-GYH-630/800/1000-2A-2 steel grid welding machine:
  Welding power is input from A.C.3-phase power supply and then reverse changes to A.C.single phase power supply output through a reverse-controller, and finally goes through a single phase step-down transformer for welding current output. In this way the problem of single power supply for A.C. Steel grid welding machine is solved, preventing a power grid from unbalance.
High efficiency and energy preservation. The efficiency can reach up 80%--90%, preserving energy 1/3 more than traditional Steel grid welding machines.
The reverse method is used in welding main circuit so as to efficiently increase the power factor of the welding equipment. The power factor for electric power supply can be over 0.9 even without a dedicated power factor compensation device.
The reverse circuit is controlled with a embedded computer, being simple in structure, reliable in operation, and excellent in anti-interference.
Modularized structures are utilized in the whole reverse power supply. Each modular unit generates power output 115KVA. Different numbers of modular units can be assembled to form such sizes of products as 630, 800 and 1000 electro forge-welding machines for steel bar gratings.

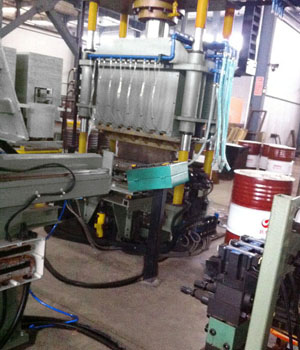

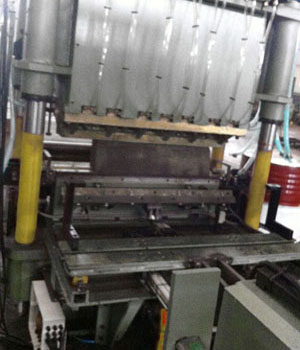

Steel grid welding machine

Steel grid welding machine

Steel grid welding machine

Steel grid welding machine

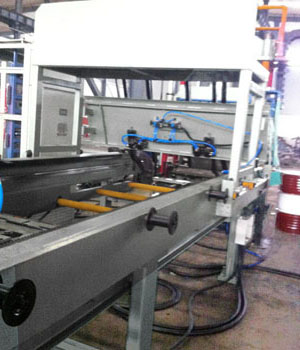

steel grating machine

steel grating machine







Item
Model
ABE-GYH-630-2A-2
ABE-GYH-800-2A-2
ABE-GYH-1000-2A-2

Steel bar

Grating size

Length
6000mm (It can be customized)
Width
1000mm (It can be customized)
Bearing bar centers
30,40mm (It can be customized)
Cross bar centers
50,100mm (It can be customized)
Max.contact area of a cross
bar with bearing bars
800mm²
1000mm²
1250mm²
Bearing bar size
Height
20-60mm
20-60mm
20-60mm
Thickness
2-4mm
2-5mm
2-6mm
Cross bar size *2
5mmx5mm,6mmx6mm
Working cycle  *3
≤8Seconds
Function

Qty of cross bars
welded at a time

2Pieces
Pressure exerted by
hydraulic press
75T
75T
100T
Method of feeding
bearing  bars
Manually positioned & fed
Manually positioned &automatically fed
Method of feeding
cross bar
Manually laid & automatically fed

Automatically laid & fed

Method of step-moving for
welding steel bar grating
Reciprocating constant distance
Linear dragging
steel bar grating

1.Bearing bar centers, quantity of bearing bars and cross bar size should be comprehensively put into consideration when selecting suitable thickness of bearing bar, being subject to the contact area of a cross bar with bearing bars. In addition, the width of grating panel is related to several factors, we take bearing bar centers 30mm, 34 pieces of bearing bars, and cross bar 6mmx6mm for example, its width will be 994 (995) (996);
2.Round bar of same diameter can also be used as cross bar
3.The tabulated working cycle is based on welding of G254/30/100 steel bar grating.
Lateral Saw of Steel Grating :
  Model ABE-GHJ-1050 Lateral Saw of Steel Grating is a kind of dedicated equipment, which is used to cut various kind of steel grating into sized ones. The cutting motor is started up with step-down voltage. The saw disc running is driven with chain drive by an A.C. Variable motor with frequency conversion. Rails for saw disc running are heat-treated and grinded possessing low friction resistance, high wearability and running precision.
Bar Drawing-Twisting Machine:
  The machine includes three units, which are respectively used to mill end of round bar into tip, draw round bar into twisted bar, straighten twisted bar & cut it into sized lengths.
Slitting Shears for Flat Steels Lateral Saw of Steel Grating:
  The Slitting shears are used to longitudinally cut a wide coil strip into sized flat steels.
Basic Parameters:
1.Raw stock (coil strip) thickness: 2-6mm;
2.Raw stock (coil strip) width: 200-500mm;
3.Raw material: Q235A、B hot-milled plain carbon steel
4.Feeding speed: 20m/min;
5.Flattening speed: 0-15m/min;
6.Min. width of sized flat steel: 20mm
   Max. Pieces of sized flat steel: 20 pieces;
7、Equipment layout: From right to left (Operating console faces to the equipment itself) (It may be specified by a customer);
8、Dimension: L 8MxW3MxH1.5M(Erection length:about 20M)
Process Flow:
  Uncoiler-open type lateral shears-hydraulic roller type feeder-guided power slitter-flattener with coders-double column-type lateral shears with spring press
Accessories:

PLC
Misubush+touch screen
Motor
ABB 50-100
SCR
MIGBT
