• Lintel Roll Forming Machine

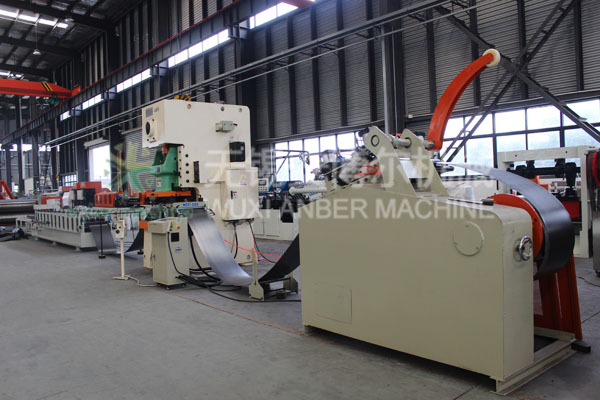

Lintel roll forming machine

Lintel roll forming machine

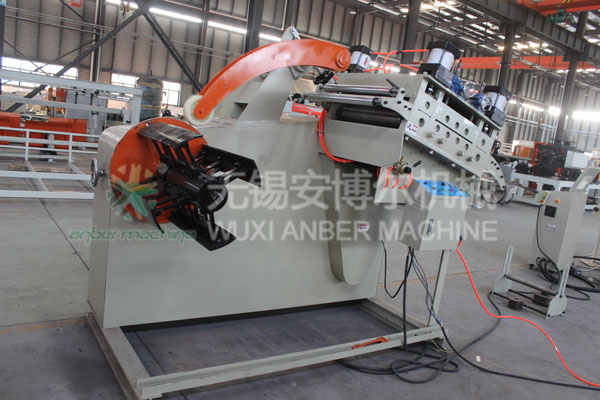

Decoiler with straightener

Decoiler with straightener

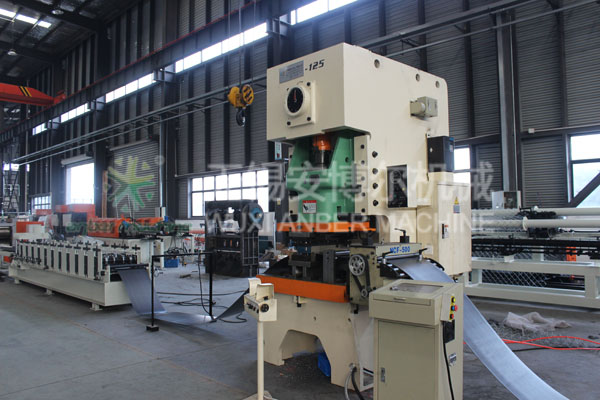

Punching machine

Punching machine

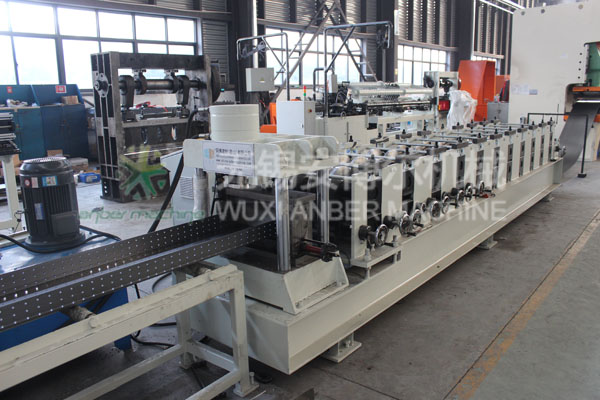

Forming machine and hydraulic cutting

Forming machine and hydraulic cutting

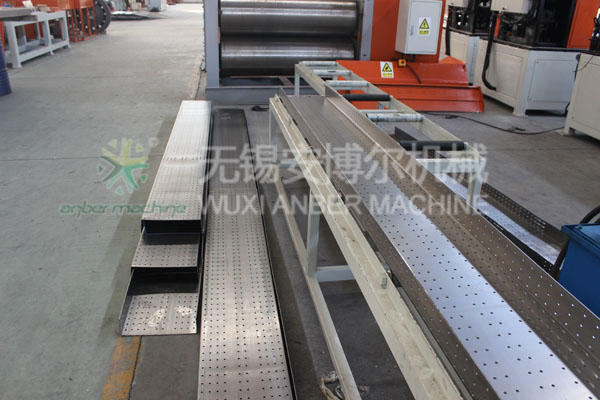

Collecting

Collecting

  • Lintel roll forming machine
  • Decoiler with straightener
  • Punching machine
  • Forming machine and hydraulic cutting
  • Collecting
  • 01. Description of lintel roll forming machine
  • Steel channel lintel is a structural horizontal block that spans the space or opening between two vertical supports. It can be a decorative architectural element, or a combined ornamented structural item. It is often found over portals, doors, windows and fireplaces. All lintels are produced by Galvanized steel or Stainless steel,it make the construction system more and more strong.
  • 02.Main parameter of decoiler with straightener
  • Width:≤456mm
    Thickness:≤3.2mm
    Inner diameter: 450-530mm
    Max loading weight:2T
    Rollers of straightener: 7 rollers
  • 03. Main parameter of punching machine
  • Width:≤456mm
    Thickness:≤3.2mm
    Material:Mild steel
    Punching force:125T
    Power:15KW
  • 04. Main parameter of forming machine
  • Roller number: 11 sets
    Drive type:Gear drive
    Diameter of forming rollers:φ75m
    Speed: 10-20 m/min
    Material of forming rollers:Gcr15
    Hardness :HRC58-62°
    Main motor:11Kw.control by frequency converter
  • 05. Main parameter of hydraulic cutting
  • Cutting type:hydraulic cutting
    Pump:7.5Kw
    Cutting according to the setting length
