Introduction of welded mesh fence machine: |
|
Welded wire mesh machine is a kind of auto welding equipment designed and manufactured by ourselves based on absorbing the advanced electromechanical controlled resistance welding technology from home and abroad, of which multinomial technologies have won the national patents.
Our welded wire mesh machine has the following major advantage:
1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is more well-set and compact.
2. The cross wire feeding hopper is originative. The cross wire feeding is automatic and driven by step motor, which makes the cross wire aligning more accurate.
3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
4. The mesh aperture size welded is diversified. The line wire spacing can be adjusted through the related parts. The cross wire spacing adjusting is controlled by microcomputer and it can have 10 different styles.
5. Welding adopts late-model efficient welding transformer. The voltage adjusting range is big and it can fall into eight different grades, which enlarge the range of wire diameter size.
6. In order to adapt the capacity of the clients' main power transformer and reduce the rush of the current, electric and electronic welding control adopt the separating control electricity input, i.e., the welding transformers don't work at the same time but in several times when welding the same row of cross wires.
7. Electric and electronic welding control system adopts synchronous control technology. The welding time and separating control welding is composed of numeric integrated circuit, which is with high control precision and stable function.
The machine can be used to produce the mesh for guard rail of road, railway, hills, fencing, mesh for casting of building roofs, etc.
|

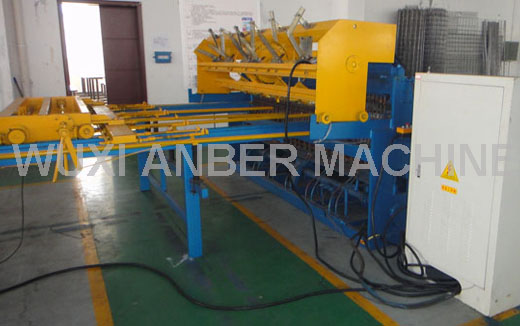

Welded wire mesh fence production line

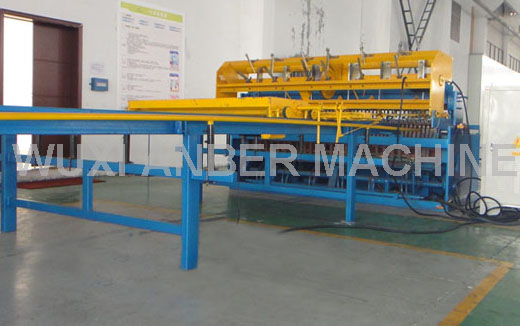

Pneumatic mesh welding machine

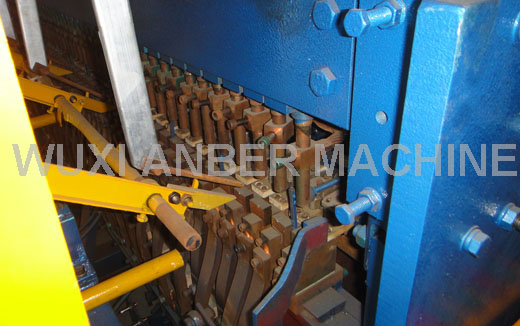

Welding system of the mesh welding production line

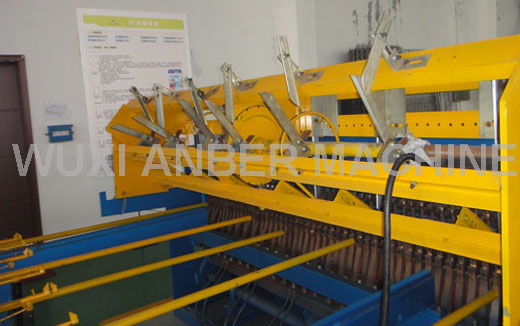

Cross wire feeding system of the Reinforcing Bar Mesh Welding Machine

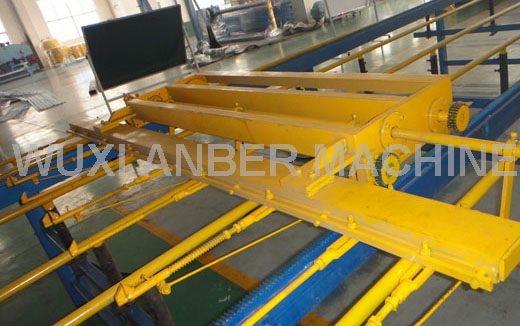

Auotmatic cross wire spacing controlling system of mesh welding machine
|
|
|
Main parameter of reinforcing mesh welding lines: |
|
Model |
ABE-3/5-1500 |
ABE-3/5-2000 |
ABE-3/5-2500 |
Mesh width |
1500mm |
2000mm |
2500mm |
Line wire spacing |
50-100mm |
50-100mm |
50-100mm |
Numbers of welding points |
30 |
40 |
48 |
Transformer |
4* 125KVA |
5 * 125KVA |
6*125KVA |
Cross wire spacing |
50-200mm |
Wire diameter |
3-5mm |
Max welding capacity |
5.0+5.0mm with standard quality |
Max welding speed |
30-40 cross wires per min |
Mesh pulling way |
Numerical control |
Cable |
3 pcs of copper cable with cross section area of 95mm2 or aluminium cable with cross section area of 120mm2,the distance between the machine and the power transformer should be less than 30m |
Welding way |
Resistance welding controlled by Silicon-controlled rectifier (hereinafter called as SCR) |
Welding voltage |
Adjustable in eight different grades through welding transformer |
Pressurizing way |
By changing the length of tie rod in pressurizing beam and the compression of the upper electrode spring |
Cross wire feeding way |
The cross wire fall off the feeding hopper into welding automatically one by one driven by step motor |
|
|
| |
|
The finished products |
|
|
|
|
Welded fence |

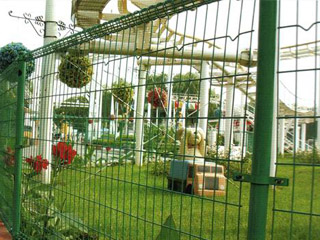

Double Loop Decorative Fence |
Welded mesh fence
|
| |
|
|
|
|
