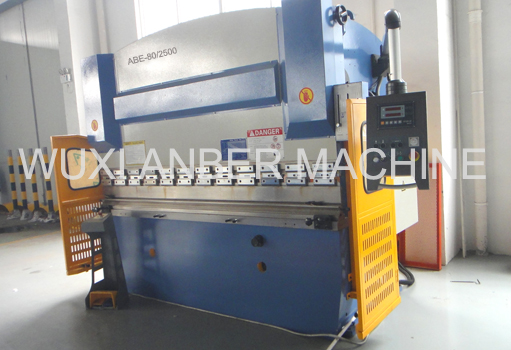

Hydraulic bending machine

factoryshow

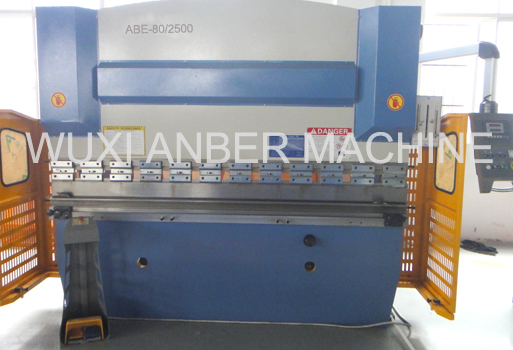

Hydraulic plate bending machine

factoryshow

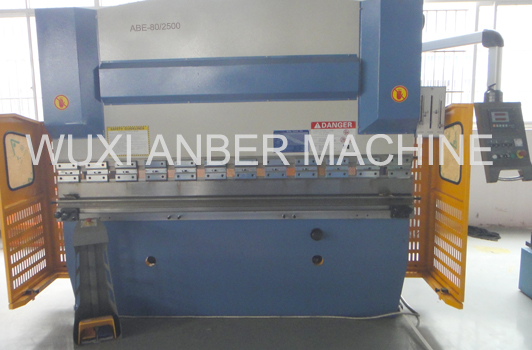

Bending machine

factoryshow

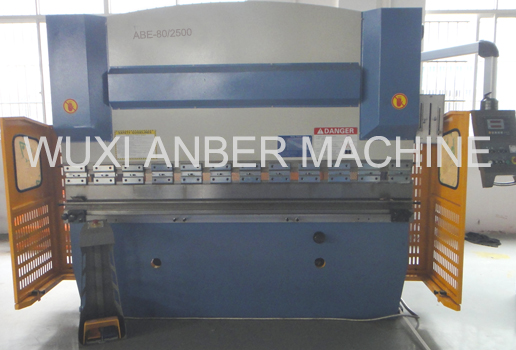

hydraulic machine

factoryshow

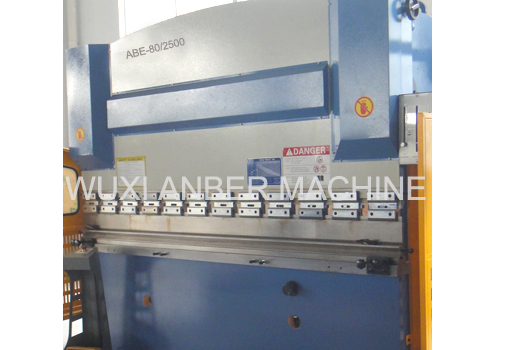

Hydraulic press brake

  • 01. General description of hydraulic bending machine
  • This hydraulic bending machine has seven machine models: 40t, 63t, 80t, 100t, 125t, 160t, 200t, which adopt the popular structure internationally and the complete machine has a good rigidity, beautiful appearance, advanced technology as well as reliable functions, being one of the ideal plate forming devices. The mesh bending machine has high production efficiency and a durable service, which is extensively employed in various industries, such as aircraft, motorcar, shipbuilding, electrical appliance machinery and light industry.
  • 02. Detailed description of hydraulic bending machine
  • The mesh bending machine body is composed of right and left wallboards, working table, oil cylinder, slider and oil tank. The oil tank is placed in the center surface of the wallboards with a reasonable pressing force and enough strength and rigidity, and transportation, installation and commissioning are all convenient and easy. In addition, the bending machine employs mechanical synchronous system and could bear a certain torque. The hydraulic bending machine is easily operated and has the functions of inching, single and continuous travelling, and the pressure maintaining time could be adjusted. The various norms and safety performance of the complete machine all conform to the national standards.
    The bending machine has upper mould adjusting mechanism, which could help get high bending precision. And it could be also used for pipe bending and piercing if it is equipped with the corresponding devices in the production process.
    When bending plates with different thickness, this bending machine should elect V-shape groove lower mould with different openings (if equipped with upper and lower mould with different shapes, then workpieces with various shapes could be bent), at the same time the bending force values could be calculated with the plate bending force figure, and adjust the corresponding working oil pressure according to the value (indicated by the pressure gauge), then the required bending force could be promised.
  • 03.Technical parameter of hydraulic bending machine
  • Name
    Unit
    Machine model
    100/2500
    125/2500
    Nominal force
    KN
    1000
    1250
    Length of work table
    mm
    2500
    2500
    Distance between uprights
    mm
    2000
    2000
    Throat depth
    mm
    320
    Slider travel
    mm
    120
    Maximum opening height between work table and slider
    mm
    415
    Slider journey adjustment
    mm
    100
    Slider running speed
    Work travel
    mm/s
    50
    Return
    mm/s
    7.5
    Fast travel
    mm/s
    45
    Main motor
    Model
    Y132M-4 B35
    Y132M-4 B35
    Power
    Kw
    7.5
    7.5
    Rotating speed
    r/min
    1400
    1400
    Slider adjust motor
    Model
    YS7124-4 B3
    YS7124-4 B3
    Power
    Kw
    0.25
    0.25
    Rotating speed
    r/min
    1340
    1340
    Back-gauge motor
    Model
    Y802-6 B3
    Y802-6 B3
    Power
    Kw
    0.55
    0.55
    Rotating speed
    r/min
    960
    960
    Internal gear pump
    Pressure
    Mpa
    32
    32
    Flow
    L/min
    16
    16
    Model
    NT2-G16F
    NT2-G16F
    Hydraulic system rated pressure
    Mpa
    20
    20
    Dimensions
    Length
    mm
    2680
    2680
    Width
    mm
    1800
    1800
    Height
    mm
    2690
    2690
    Machine weight
    kg
    7000
    7200
