The cap-striking machine is used to strike the umbralla tape , it is the main auxiliary machine for the roofing nail making machine. Productivity: 5*70pcs/min
Capacity: 5.5kw
Weight: 3000kg
Overall dimensions: 2400*1500*1700mm

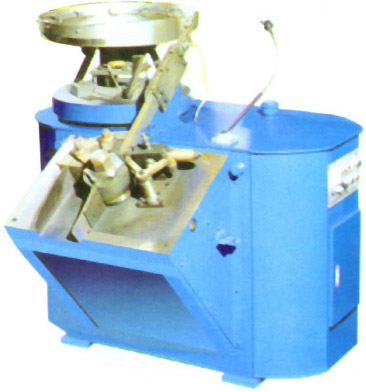

High-speed Thread Rolling Machine
Thread rolling diameter: O2.0-3.1mm
Working length: 12.5-90mm
Productivity: 600-1000pcs/min
Total weight: 1500kg
Motor power: 5.5-7.5kw
Overall dimensions: 1420*1220*1450mm

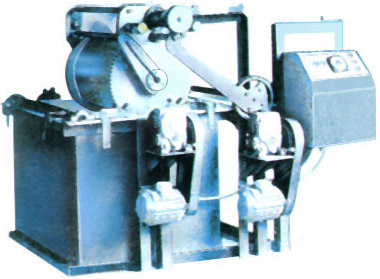

Semi-auto Rolling-plating Machine
Model: ABE25-1
Load of roller: 20-25kg
Time control: 0-120min
Roller speed: 7-9r/min
Model: ABE50-2
Load of roller: 100kg
Time control: 0-120min
Roller speed: 7-9r/min

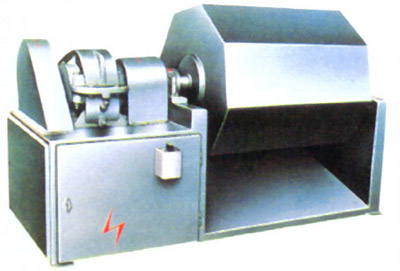

Nail washing Machine
The nail washing machine is used to polish the wire nail brighter and more smooth.
Model: ABE-SD400
Capacity: 400kg
Motor power: 3-4kw
Overall dimensions: 1640*900*1000mm
Model: ABE-SD600
Capacity: 600kg
Motor power: 3-4kw
Overall dimensions: 1800*1000*1100mm
Model: ABE-SD1000
Capacity: 1000kg
Motor power: 5.5-7.5kg
Overall dimensions: 2000*1500*1400mm
