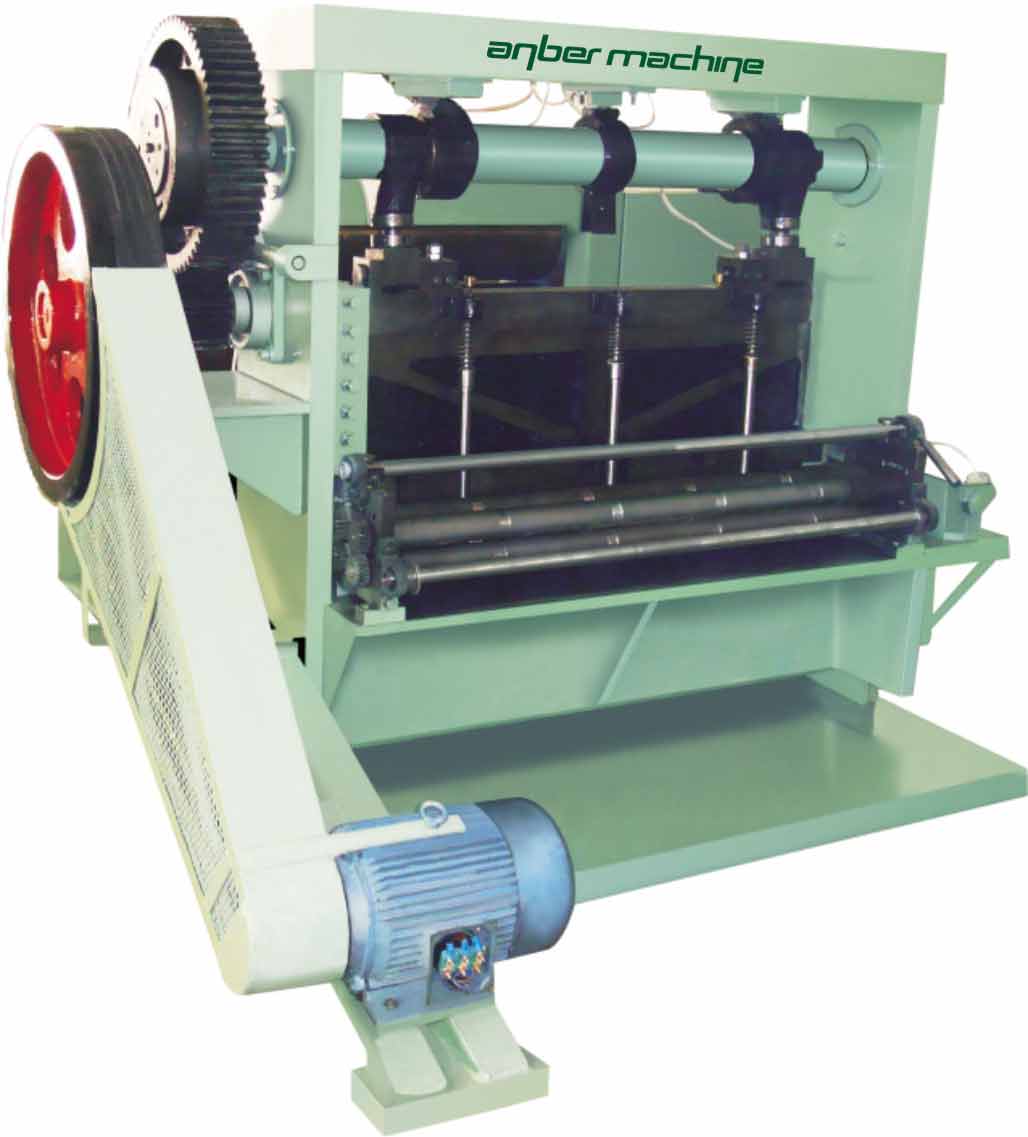

Parameter:

Model: ABE-4-1300
Range of the thickness: 0.5-4mm
Cutting width: 1300mm
SWD: 5-25mm
LWD: 8-40mm
Working speed: 50-200 strokes per minute
Feeding distance: 0-1.5mm
Motor power: 5.5kw
Net weight: 2.5T
Overall size: 2000mm*1900mm*1300mm
Application: Ventilation Screens
                   Medium Filters
                   Fireplace Screens
                   Acoustic Ceilings

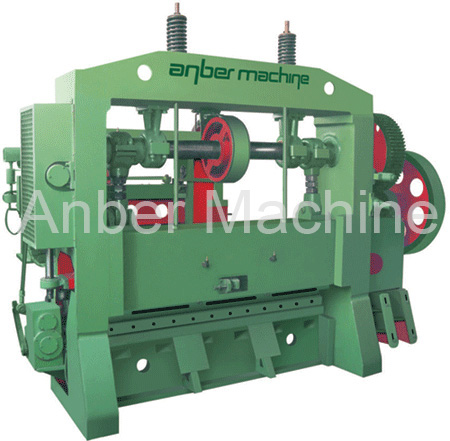

Parameter:

Model: ABE-2-1500
Range of the thickness: max. 2mm
Cutting width: 1500mm
SWD: 12-40mm
LWD: 25-80mm
Working speed: 120 strokes per minute
Feeding distance: 0-2.5mm
Motor power: 11kw
Net weight: 6T
Overall size: 2870mm*990mm*2140mm
Application: Medium and Standard Filters
                   Decorative Purposes
                   Ventilator Grilles
