• Fence Type Expanded Metal Mesh Machine



  • 01. Instruction of the fence type expanded metal mesh machine
  • The fence mesh machine is used produce the expanded metal mesh for fence, the fence is usually applied in construction, hardware, door, windows, safety fence, highway guardrail and lathes. This kind of fence mesh usually need surface treated to used as door and the highway guardrail, etc.
    The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.
  • 02. Parameter
  • expanded metal mesh machine ABE-4-2000



    Model: ABE-4-2000
    Range of the thickness: 0.5-2.5mm
    Cutting width: 2000mm
    SWD: 8-50mm
    LWD: 15-100mm
    Working speed: 70 strokes per minute
    Feeding distance: 0-4mm
    Motor power: 11kw
    Net weight: 11T
    Overall size: 2400mm*3500mm*2300mm
    Application: Fencing Gates
                       Machine Guards
                       Magazine Racks

    Fence type expanded Metal Mesh
    Machine ABE-4-2000

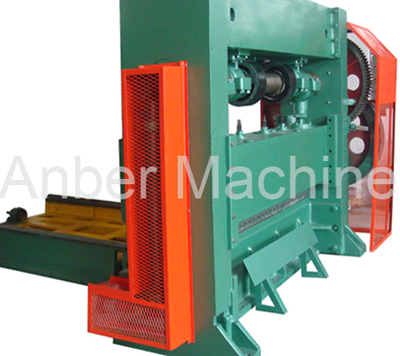

    expanded metal mesh machine ABE-2.5-2000


    Parameter: Model: ABE-2.5-2000
    Range of the thickness: 0.5-4mm
    Cutting width: 2000mm
    SWD: 10- 70mm
    LWD: 20-150mm
    Working speed: 60 strokes per minute
    Feeding distance: 0-4mm
    Motor power: 15kw
    Net weight: 12T
    Overall size: 3600mm*3550mm*2400mm
    Application: Fencing Gates
    Fence type expanded Metal Mesh
    Machine ABE-2.5-2000

  • 03. The finished products (expanded metal mesh)
    • expanded metal mesh
    expanded metal mesh
    expanded metal mesh
    Expanded Metal Mesh-F001
    Expanded Metal Mesh-F002
    Expanded Metal Mesh-F003
